Electrical Audio

EApreq500

EApreq500

Regular price $900.00 USD
Regular price Sale price $900.00 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Nov 1st within the US via FedEx Ground insured. DHL everywhere else.

View full details

NEW!

The EApreq500.

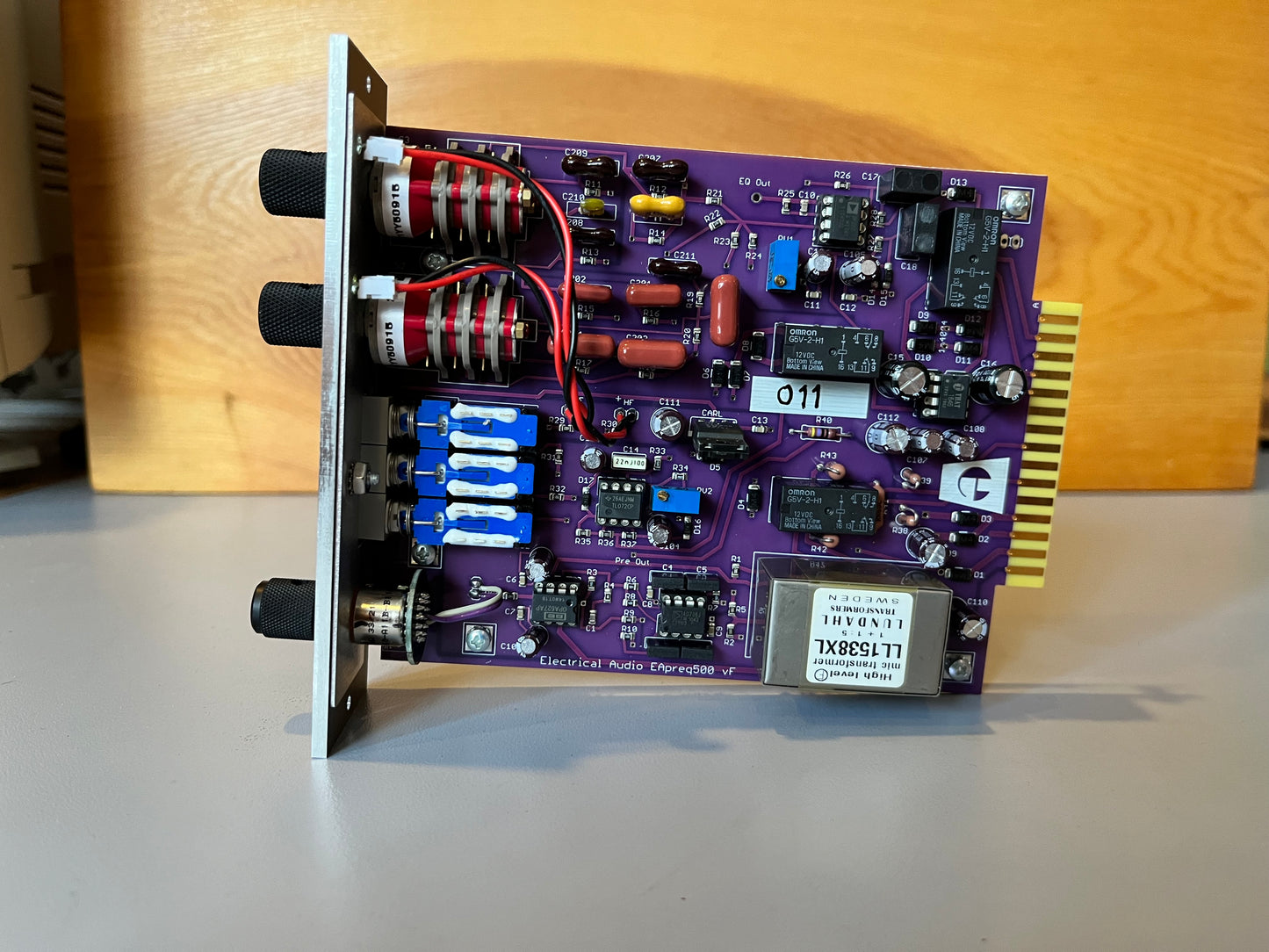

The EApreq500 is the 500-series version of our EAPreQ, the 2-channel rackmount preamp and EQ that we've been building since 2011. Born out of a desire to add an original, versatile, transformer-based preamp to our arsenal, it has been in constant use here at Electrical Audio and many other studios worldwide. It is a microphone preamp with two-band equalizer that is dead-simple to use. Sonically, it features the subtle character of its input transformer with very little amplifier noise or distortion. The equalizer section offers separate high- and low-shelf boosts to broadly and quickly supplement bass and/or treble as needed.

A design premium was placed on long-term reliability, ease of use, and flexible application. Each unit performs identically to ensure accurate level-matching with quick and easy recallability across multiple channels.

Every preamp is hand-built by the Electrical Audio crew here in Chicago, IL.

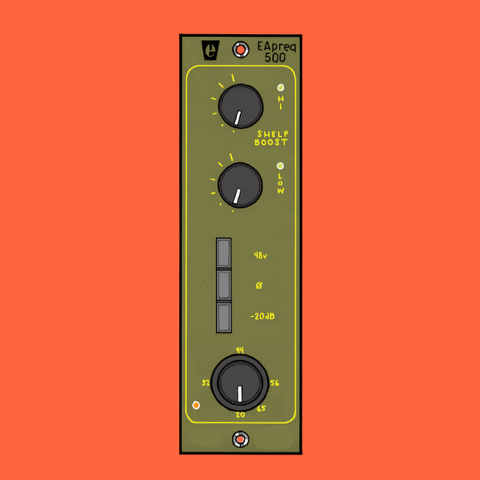

The Basics

  • Lundahl’s best microphone input transformer
  • -20dB input pad switch - sealed gold contact relay
  • Polarity reverse switch - sealed gold contact relay across the output for quietest operation
  • 48v phantom power switch - standard application
  • 16-position, gold contact rotary gain switch, ranging from 20 to 65 dB of gain, with 3 dB per step
  • Low and high-frequency shelf boost EQ - Controlled with a solid multi-section gold contact switch, with 5 gain positions.  A sealed relay bypasses the EQ circuit when not in use.
  • DC servo for both preamp gain and shelf EQ make-up gain amplifiers. This ensures long-term predictable operation and sound quality, avoiding the gradual decline associated with electrolytic capacitor-coupled circuitry
  • Ground-sensing solid-state balanced output amplifier, capable of driving 600Ω loads with ease, balanced or unbalanced
  • Clear green LEDs indicating which shelf band is engaged.
  • Bright, amber colored "peak" LED signal just before clipping.

TECHNICAL SPECIFICATIONS

FREQUENCY RESPONSE

± .5dB from 7 Hz to 102 kHz (3dB down @120kHz)


MAXIMUM OUTPUT LEVEL=

+27dBu Balanced 10kΩ Termination (typical modern equipment inputs)

+26.5dBu Balanced 600Ω Termination (“vintage” input impedance standard)

+21dBu Unbalanced 10kΩ Termination


NOISE AND DISTORTION

THD+N (1kHz, 35dB gain) ≤ .003%

THD+N (30Hz, 35dB gain) ≤ .012%

IMD (50Hz/7KHz) ≤ .0015%

Noise floor (22- 22kHz unweighted, lowest gain setting) ≤ -99dBu

Noise floor (22- 22kHz unweighted, EQ engaged) ≤ -86dBu

Equivalent Input Noise = (44dB gain, 150Ω input source, no EQ) ≤ -128dB

Power Consumption is typically < 50mA per 16 volt rail, and < 100mA per rail in the extreme (1kHz sine wave @26dBu into a 600Ω load, all relays on).
